Eximcorp PromStroiKontrakt MSK

Eximcorp has evolved a business partnership with PromstroiKontraKt  group of companies in Russian Federation to offer advanced construction technologies in construction in India for following form work systems:

  • Wall Shuttering
  • Column Shuttering
  • Radial Shuttering
  • Elevating and Adjustable Shuttering System
  • Round Column Shuttering
  • Shuttering for one side concrete casting

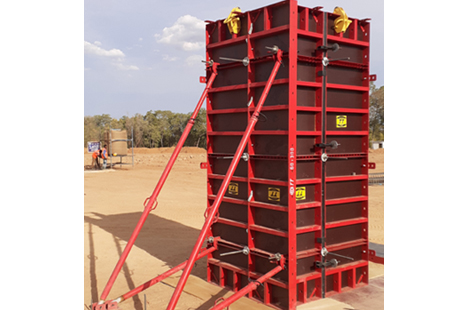

MSK Modular system to meets complex and hard specification of vertical structure. This system made of MS Frame with in-built high performance Film Faced Shuttering plywood . The need for lifting equipment at site is rare. This is a perfect system for any type of Infra projects or heavy civil construction.

Advantages

  • MSK system increases the productivity at site due to its engineered modular designed frames in the light of engineering values necessary for performance.
  • MSK system transposes smooth surface of concrete. Its variant is TT Plus which universal modular panel that can be utilized in varieties of applications like corner of wall as well as adjustable to column dimensions.
  • MSK saves on investment cost owing to its adoptability to multifarious applications.

Technical information

  • Allowable fresh Concrete Pressure of Wall panels =50 kN/M2
  • Allowable fresh Concrete Pressure of Column panels =80 kN/M2

What does our promise of Efficiency mean to you

  • Products that improve your cost, material and energy efficiency
  • Reliable and timely deliveries
  • Local knowledge, support and service
  • Solutions for every formwork application
  • Proven and documented technical data and environmental statements

Availability options

Panel dimensions:

Height- 1250, 1500 mm; 2400mm,3000mm

Width- 200, 250, 300, 450, 500, 600, 750 mm

Note: MSK system is delivered complete with connecting accessories such as Tie rod, wedge clamp, clip, connector, including alignment prop to ensure vertical accuracy. All such accessories are also tested and compliant the applicable Russian GOST
